AlphaServer GS140

Compaq AlphaServer GS140

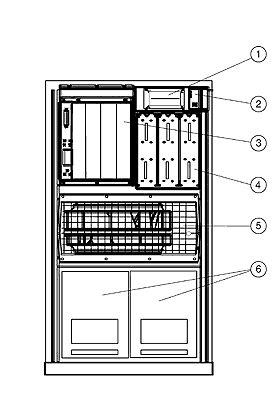

CD-ROM with space for optional diskette drive
Cabinet Control System
9-Slot System Bus (four front, five rear)

Power System
Cooling
Plug-In Units/I/O or Disks (or two front,two rear)

At a Glance

AlphaServer GS140 systems feature mainframe-like performance and capabilities, and high-availability computing through clustering

GS140 systems include:

Processor module with two Alpha microprocessors 21264 6/525- MHz CPUs, each with 4-MB backup cache or two 21264 6/700 MHz CPUs, each with 8-MB backup cache
System I/O module with 4 I/O channels
4-GB memory
UltraSCSI single-channel StorageWorks Plug-in Unit
9.1-GB 3.5² UltraSCSI system disk drive
2-m SCSI cable, BN38C-02
600-MB CD-ROM drive, controller, and cable
12-slot PCI Plug-in-Unit
PCI 1-port UltraSCSI Single-ended adapter
10/100 Mb Fast Ethernet network interface card
Two H7263-AC or H7263-AD non-BBU capable 48 VDC power regulators.
3-phase power subsystem with power cord
Shielded console cable for connection to terminal
Tru64™ UNIX or OpenVMS Factory Installed Software
90-day software product warranty
Protected by Compaq Services, including a one-year, on-site, four-hour response hardware warranty; system installation must be ordered separately

Standard Features

Processor
Two Alpha 21264 525-MHz or 700-MHz processors (two CPUs per module)

Cache Memory
4-MB ECC L2 onboard cache per 6/525 CPU; 8-MB ECC L2 onboard cache per 6/700 CPU

Architecture
64-bit bus-based system architecture with nine system bus slots for CPU, memory, and I/O modules (1.87 GB/second sustained system bandwidth, 2.1 GB/second peak bandwidth)

Upgradability In cabinet upgrades support additional processors, additional memory, additional I/O port modules, as well as storage and PCI I/O module options; upgrades to AlphaServer GS140 and next generation Alpha system available
Standard	2 CPUs on one CPU module
Maximum	14 (seven dual-CPUs)

System I/O Module and System I/O Expansion
System I/O module with 4 I/O channels (KFTHA-AA)
Standard	1
Maximum	3
PCI Plug-in Unit (DWLPB-AA) with 12-slot PCI box and space for second 12-slot PCI box or StorageWorks shelf
Standard	1
Maximum	12

Memory
Standard	4 GB
Maximum	28 GB

Network Controller PCI 10/100 Mb Fast Ethernet adapter UTP

Expansion
Drive Bays	7 to 49 available in system cabinet; up to 84 available in I/O expansion cabinet
PCI	144 slots

Storage
CD-ROM	5.25² half height CD-ROM drive
Hard Drive	9.1-GB UltraSCSI disk drive (standard) ); 18.2-GB and 36.4-GB drives available
Maximum Internal Storage	1784 GB (36.4-GB drives)

Storage Controller
UltraSCSI Fast Wide Single-ended adapter

Power
3-phase power subsystem with power cord
Optional standalone UPS with added backup runtime for systems and external devices available

Intelligent Manageability
Software features for advanced server and network management, including
ServerWORKS™ Manager
ServerWORKS workgroup administrator
ServerWORKS Manager application
SNMP agents to manage SCO UNIX, Novell NetWare, and IBM OS/2
Intelligent Server Management

Security
Chassis lock
Multi-boot for choice of boot device

OS Support
Tru64 UNIX systems include pre-installed software, base license, unlimited user license, server extension license, Open Source Internet Solutions, and Netscape Enterprise Server 3.0.
OpenVMS systems include pre-installed software, base license and Enterprise Integration Server License Package V3.0A.
(Support is available for up to three instances of either Tru64 UNIX or OpenVMS on a single hardware platform)
Minimum OS support: Tru64 UNIX V4.0E or later or OpenVMS V7.1-2 or V7.2-1 or later

Service and Support
Protected by Compaq Services, including one-year, on-site hardware warranty with four-hour response. Software warranty is a 90-day telephone advisory. Training, consulting, network integration, software support, comprehensive system maintenance and guaranteed uptime services are also available for customers requiring higher levels of service and support.
