AlphaServer ES40

Compaq AlphaServer ES40 QuickSpecs

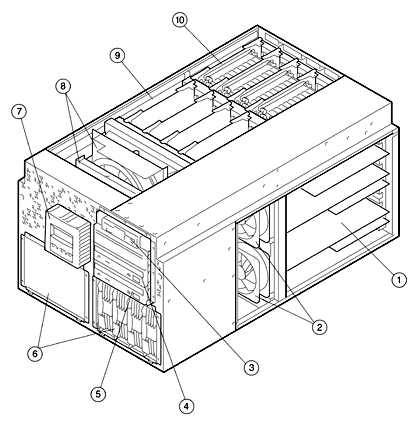

PCI cards
Fans
Diskette drive
Removable media bays
CD-ROM drive

4-bay disk drive storage cages
Control panel
Fans
CPUs
Memory

At A Glance

ES40 Systems include:

Alpha 21264 6/500-MHz CPU with 4-MB cache
6-10 64-bit PCI I/O expansion slots
512-MB, 1-GB, or 2-GB memory option
1.44-MB diskette drive
600-MB 32X IDE CD-ROM drive
2 EIA-232 full-duplex asynchronous modem control serial ports, 9-pin D-subminiature connectors
Bi-directional enhanced serial port, 25-pin D-subminiature connector
RMC dedicated serial port,
6-pin MMJ connector
Dual USB ports
Keyboard and mouse port
Knockouts for two 68-pin SCSI connections
Auto-sensing power supply
U.S. English keyboard with North America orders
3-button mouse
Integral remote system management console
Customer documentation
Tru64 UNIX or OpenVMS Factory Installed Software
90-day software warranty
Protected by Compaq Services, including three-year hardware warranty, on-site with 5 x 9 next business day response

Standard Features

Processor
Alpha 21264 6/500-MHz CPU

Cache Memory
4-MB backup cache

Upgradability
Supports additional processors and upgrades of memory and hard drives

Memory
Minimum	512 MB Model 1; 1 GB Model 2
Maximum	8 GB (16 DIMM slots) Model 1; 16 GB (32 DIMM slots) Model 2

Network Controller Choice of Ethernet controllers

Expansion
PCI I/O slots	6 slots Model 1; 10 slots Model 2

Storage
Diskette Drive	1.44 MB diskette drive in dedicated slot
CD-ROM	600-MB 32X IDE CD-ROM
Hard Drives	Choice of 9.1-GB, 18.2-GB, or 36.4-GB drives

Interfaces
Parallel	1 Bi-directional parallel port, 24-pin D-subminiature connector
Serial	2 EIA-232 full duplex asynchronous modem control serial ports, 9-pin D-subminiature connectors
USB	Dual USB ports
Keyboard	1
Mouse	1
Remote systems management	1 dedicated remote systems management port
SCSI connections	Two 68-pin SCSI connections knockouts

Graphics
Optional

Form Factor
Tower, Pedestal, Rackmount (M-Series Cabinet)

Power Supply
Auto sensing power supply, hot swappable, N+1

Manageability
ServerWORKS Manager

OS Support
Tru64 UNIX systems include pre-installed software, base license, unlimited user license, server extension license, Open Source Internet Solutions, and Netscape Enterprise Server 3.0.
OpenVMS systems include pre-installed software, base license, and Enterprise Integration Server License Package V3.0A.
Minimum OS support -Tru64 UNIX V4.0F or OpenVMS V7.1-2.

Service and Support
Protected by Compaq Services including a 3-year on-site hardware warranty with next business day response. Software warranty is a 90-day telephone advisory. Training, consulting, network integration, software support, comprehensive system maintenance and guaranteed uptime services are also available for customers requiring higher levels of service and support.
