AlphaServer DS10

Compaq AlphaServer DS10

AlphaServer DS10 systems are ideal for ISP/Internet applications, High Performance Technical Computing, software development, and replicated site applications
Alpha processor module with 21264 466 MHz CPU with 2-MB onboard ECC cache
Onboard IDE controller for internal storage
Onboard dual 10/100 BaseT Ethernet ports
4 PCI expansion slots, 3 64-bit PCI slots, 1 32-bit PCI slot
2-GB maximum memory capacity
1.44-MB diskette drive
600-MB CD-ROM drive
5.25" x 1.6" removable media bay or 3.5" x 1" hard disk drive bay, two 3.5" x 1" hard disk drive bays
2 serial ports, 1 serial port with full duplex asynchronous modem control, 1 RMC dedicated serial port with full duplex asynchronous modem control
Bi-directional enhanced parallel port
PS/2-style keyboard port and mouse port
300 W (120/240V, 60/50 Hz) power supply
3-button mouse
US English keyboard with North American orders
US power cord with North American orders
US English documentation
Optional rackmount kit must be ordered separately
Tru64 UNIX or OpenVMS Factory Installed Software
90-day software product warranty
Protected by Compaq Services, including 3-year on-site hardware with next business day response

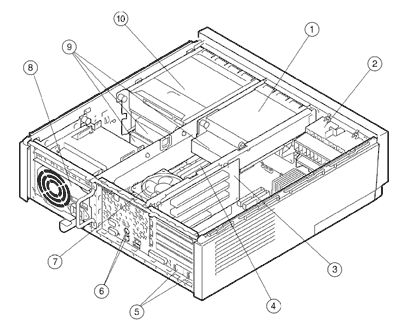

Diskette drive
Fan
PCI riser card
Memory boards
Dual Ethernet ports

Keyboard and mouse ports
CPU and fan
Power supply
Disks
CD-ROM drive

Standard Features

Processor
Alpha 21264 466 MHz processor

Cache Memory
2-MB onboard cache


Upgradability Supports upgrades of memory and hard drives
Standard	1 CPU

Memory
Standard	128 MB, 256 MB, 512 MB, or 1GB(1 memory kit)
Maximum	2 GB (2 memory kits, kits include 2 industry-standard DIMMs with ECC support)

Network Controller Onboard dual 10/100 BaseT Ethernet ports

Expansion
Storage bays	5 (Diskette drive bay, CD-ROM drive bay, 5.25" x 1.6" removable media bay or 3.5" x 1" hard disk drive bay, two 3.5" x 1" hard disk drive bays)
PCI slots	4 slots (3 64-bit, 1 32-bit)

Storage
Diskette Drive	1.44-MB diskette drive
CD-ROM	5.25" half height CD-ROM drive
Hard Drives	10-GB IDE disk drive or 9.1-GB and 18.2-GB UltraSCSI disk drives available

Storage Controller Onboard IDE controller for internal storage, PCI SCSI controller optional

Interfaces
Parallel	1 bi-directional enhanced port
Serial	2 ports, 1 serial port with full duplex asynchronous modem control and 1 RMS dedicated serial port with full duplex asynchronous modem control
Keyboard	1 PS/2-style port
Mouse	1 port

Power Supplies
300W (120/240V, 60/50 Hz)

Manageability
Software features for advanced server and network management, including

ServerWORKS™ Manager
ServerWORKS workgroup administrator
ServerWORKS Manager application
SNMP agents to manage SCO^® UNIX^®, Novell^® NetWare^®, and IBM OS/2^®
Intelligent Server Management

OS Support
Tru64 UNIX systems include pre-installed software, base license, unlimited user license, server extension license, Open Source Internet Solutions
OpenVMS systems include pre-installed software, base license, and Enterprise Integration Server License Package V3.0A

Service and Support
Protected by Compaq Services including a 3-year on-site hardware warranty with next business day response. Software warranty is a 90-day telephone advisory. Training, consulting, network integration, software support, comprehensive system maintenance and guaranteed uptime services are also available for customers requiring higher levels of service and support.

System requirements

DS10 requires Tru64 UNIX V4.0F or OpenVMS V7.2-1
Mandatory selection of IDE or SCSI system disk drive
SCSI adapter and SCSI cable kit required for internal SCSI disks and tape
Country-specific keyboard and power cord for all non-North American orders
Software media and documentation for first system on sit
