Compaq ProLiant 8000

Compaq ProLiant ML750

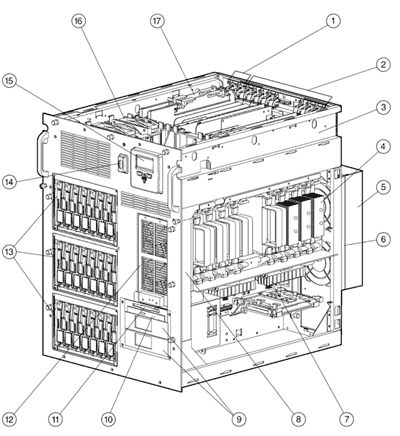

2 x 66-MHz Extended SCSI PCI Hot Plug Expansion Slots
9 x 33-MHz PCI Hot Plug Expansion Slot
Rack Rail Slots
Intel Pentium III Xeon processor (supports up to eight) with Redundant Processor Power Modules (one per processor
Rear Hot Plug Redundant Fan
Rear Redundant Processor Fans
Memory Expansion Board
Redundant Internal Processor Fans

Two 5.25" removable media bays
High Speed IDE CD-ROM (Low-Profile)
1.44-MB Diskette Drive (Low-Profile)
Front Hot Plug Processor Fan
Hot Plug Drive Bay; three Internal Drive Cages standard for 21 x 1-inch Wide Ultra2 SCSI hot plug hard drives
On/Standby Power Switch
Integrated Management Display (IMD)
Hot Plug Redundant I/O Fans
Smart Array 4250ES Controller (optional redundant array controller shown)

At A Glance

The ultra-capacity data center server with breakthrough 8-way scalable performance and the highest levels of internal fault tolerant storage for 7 x 24 environments
8-way server with Compaq/Intel co-developed Profusion architecture and Pentium^® III Xeon™ processor support
14U rack-optimized design
Supports one to eight Intel 550-MHz Pentium III Xeon processors with 512K, 1-MB and 2-MB L2 Cache
ECC-protected memory bus and cache
100-MHz SDRAM DIMM memory that is expandable to 16 GB
Ten 64-Bit PCI and one 32-Bit PCI I/O expansion slots (2 x 66 MHz, 9 x 33 MHz) all PCI Hot Plug
NC3131 Fast Ethernet NIC Dual Port 64 PCI 10/100, upgradable to Gigabit Ethernet
Smart Array 4250ES Controller (cableless) with available optional redundancy
Supports 21 x 1" hot plug Wide Ultra2 SCSI drives
Internal hot plug disk capacity of 382.2 GB (21 x 18.2-GB 1 "
hot plug Wide Ultra2 SCSI hard drive)
35.2 TB of external storage using Fibre Channel Host Adapters, Hubs and Array Storage Subsystems
Industry-Standard PCI Hot Plug with push button functionality
Compaq Insight Manager, SmartStart and Rack Builder
Easily serviceable design
NSTL YMARK2000 tested
Protected by Compaq Services, including a limited three-year parts, labor and on-site warrantywith optional four-hour response. Pre-Failure Warranty and Compaq Service and Support Programs available on a worldwide basis—Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center at 1-800-345-1518 for details. In Canada, consult the Product Information Center at 1-800-567-1616 for details.

Standard Features

Available in multiple configurations.

Processor
Intel Pentium III Xeon processor 550 MHz

Cache Memory – One of the following:
2-MB level 2 writeback cache per processor standard
1-MB level 2 writeback cache per processor standard, 2-MB level 2 writeback cache per processor optional
512-KB level 2 writeback cache per processor standard, 1-MB or 2-MB level 2 writeback cache per processor optional

Cache Accelerator – One of the following:
Cache Accelerator Standard
Cache Accelerator Optional (6/550-512K Model 2S-256 MB)

Upgradability
Upgradable to eight processors


Memory – One of the following
Standard	4096 MB of SDRAM DIMM memory
Maximum	16 GB

Standard	2048 MB of SDRAM DIMM memory
Maximum	16 GB

Standard	1024 MB of SDRAM DIMM memory
Maximum	16 GB

Standard	256 MB of SDRAM DIMM memory
Maximum	16 GB

Network Controller
NC3131 Fast Ethernet NIC 64 PCI Dual Port 10/100 in PCI slot


Expansion Slots
I/O (Total)	11 (Ten 64-Bit PCI and one 32-Bit PCI)
PCI 66 MHz (Hot Plug)	2
PCI 33 MHz (Hot Plug)	9

Storage Controller
Smart Array 4250ES Controller


Storage
Diskette Drive	Integrated 1.44 MB (Low-Profile)
CD-ROM	Integrated High Speed IDE CD-ROM Drive (Low-Profile)
Hard Drives	None
Maximum Internal Storage	382.2 GB (Internal hot plug drive cages only)

Interfaces
Parallel	1
Serial	2
Pointing Device (Mouse)	1
Graphics	1
Hot Plug Keyboard	1
Network RJ-45	2

Graphics
Integrated 1024 x 768, 256 color on PCI local bus, 2-MB video memory

Form Factor
14U Rack Form Factor; ships with sliding rack rails and cable management arm; standard 19² rack-mountable


Compaq Software
Compaq Insight Manager	The comprehensive system management tool that monitors the operation of Compaq servers, workstations and clients
Compaq SmartStart	The server configuration and software integration tool from Compaq
Array Configuration Utility (ACU) with Smart Array Controllers	Same easy to use yet powerful GUI configuration utility and easy to navigate wizards for all Smart Array Controllers

Manageability
Compaq Insight Manager
Compaq Remote Insight Board (optional)
Integrated Remote Console (IRC)
Integrated Management Display (IMD)
Recovery Server Option
Automatic Server Recovery-2 (ASR-2)
Advanced Configuration and Power Interface Specification Ready (ACPI)
Server Health Logs
Integrated Management Logs
Off-Line Backup Processor capability
Compaq Redundant Power Supply Utility
Compaq Power Down Utility
Pre-Failure Warranty (covers processors, as well as hard drives and memory)

Availability
PCI Hot Plug with push button functionality
Redundant Smart Array 4250ES Controller option
Redundant Hot Plug Power Supplies
Redundant Hot Plug Fans
Redundant Processor Power Modules
Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)
Redundant / adaptive load balancing NIC Support
Hot Plug Dual Port 10/100 TX NIC
ECC Memory

Security
Power-on password
Hot plug keyboard password
Diskette drive control
Diskette boot control
Network Server Mode
Security provision
Parallel and serial interface control
Administrator's password
Disk configuration lock
Keylock System chassis
Power supply security bar

Power Supply
Two 1150/500-Watt Hot Plug Redundant Power Supplies (support for up to three Hot Plug Power Supplies). Power supplies are load sharing. Optimized for 220 volts; runs on 110 or 220 volts

OS Support
Microsoft Windows NT Server
Microsoft Windows 2000 Server
Novell NetWare
SCO UnixWare and OpenServer
Sun Solaris^TM 7 Intel Platform Edition(furture support is planned)

Service and Support
Compaq Services provides a wide range of service offerings, including a three-year, limited warranty fully supported by a worldwide network of resellers and service providers, lifetime toll-free 7 x 24 hardware technical phone support, and Pre-Failure Warranty coverage of hard drives, memory and processors. Disaster recovery services are available through partnership with Comdisco.
