Compaq ProLiant ML530

Compaq ProLiant ML530

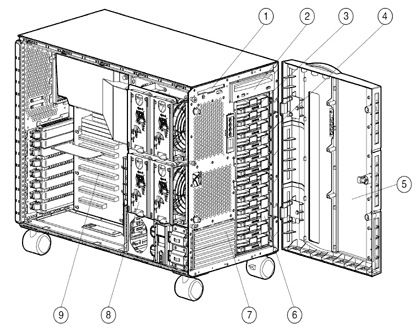

1.44-MB Floppy Drive
High Speed IDE CD-ROM
Diagnostic Lighting
Wide Ultra2/Ultra3 Hot Plug Drive Cage (6 x 1 ² ) (Optional)
Front Bezel
Wide Ultra2/Ultra3 Hot Plug Drive Cage (6 x 1 ² ) (Standard)
5.25-inch Removable Media Bays
Hot Plug Fans with Optional Redundant Hot Plug Fans shown
Eight PCI Slots

What's New

The fastest two-way server now even faster with the new Intel Pentium^® III Xeon^™800-MHz
Completely redesigned chassis for maximum system expansion capabilities
Redundant options provide maximum uptime

At A Glance

Intel Pentium IIIXeon 800-MHz Processor (dual processor capability)
256-KB level 2 writeback cache per processor
Next generation Highly Parallel System Architecture using the RCC LE 3.0 Chipset with 133-MHz Front Side Bus
PC133MHz Registered ECC SDRAM memory expandable to
4 GB
64-bit PCI for latest I/O performance
Eight total PCI slots: two 64-bit, 66MHz, five 64-bit, 33MHz, and one 32-Bit, 33MHz
Integrated Dual Channel Wide Ultra2 SCSI Adapter
Wide Ultra2/Ultra3 SCSI Drive Cage standard (6 x 1 ² )
Optional Wide Ultra2/Ultra3 SCSI Drive Cage (6 x 1 ² )
Internal mass storage capacity up to 218.4 GB (with optional 6x1 ² hot plug drive cage installed)
Integrated Remote Console and Automatic Server Recovery-2 (ASR-2)
450-Watt Hot Pluggable Power Supply with optional Hot Plug Redundant Power Supply (RPS)
Compaq Insight Manager and SmartStart
Protected by a Global three-year, on-site limited warranty with next business day response, and extended Pre-Failure Warranty which covers processors, memory and disk drives, as well as a wide range of Compaq Services — Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center at 1-800-345-1518 for details. In Canada, consult the Product Information Center at 1-800-567-1616 for details.

Standard Features

Compaq ProLiant ML530
Available in multiple configurations.

Processor
Intel Pentium III Xeon processor 800 MHz

Cache Memory
256-KB level 2 writeback cache per processor

Upgradability
Upgradable to dual processing


Memory
Standard			128 MB (PC133MHz Registered ECC SDRAM DIMM Memory)
Maximum			4 GB

Network Controller
NC3123 Fast Ethernet NIC PCI 10/100 WOL



Expansion Slots
I/O (Total)			8
64-bit, 66 MHz PCI			2
64-bit, 33 MHz PCI			5
32-bit, 33 MHz PCI			1

Storage Controller
Integrated Dual Channel Wide Ultra2 SCSI Adapter



Storage
Diskette Drive			1.44 MB
CD-ROM			High SpeedIDE CD-ROM Drive
Hard Drives			None
Maximum Internal Storage			218.4 GB (with optional drive cage)


Interfaces
Parallel			1
Serial			2
Pointing Device (Mouse)			1
Graphics			1
Hot Plug Keyboard			1
Network RJ-45			1

Graphics
Integrated ATI Rage IIC Video Controller with 4MB Video Memory

Form Factor
Tower or Rack (7U)


Compaq Software
Compaq Insight Manager			The comprehensive system management tool that monitors the operation of Compaq servers, workstations and clients
Compaq SmartStart			The server configuration and software integration tool from Compaq
Array Configuration Utility (ACU) with Smart Array Controllers			Same easy to use yet powerful graphical user interface (GUI) configuration utility and easy to navigate wizards for all Smart Array Controllers

Manageability
Automatic Server Recovery-2 (ASR-2)
Integrated Remote Console (IRC)
Hardware Remote Console
Full Remote Server Reboot Capability
Reset and Failure Sequence Replay
Host Hardware Independent
Operating System Independent
Server Health Logging
Revision History Table
Automatic Revision Tracking
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Off-Line Backup Processor capability
Pre-Failure Warranty (covers processors, hard drives and memory)

Security
Power-on password
Hot plug keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Disk configuration lock

Power Supply
450W Hot Pluggable Power Supply (one standard)

Additional power supply required if a second optional drive cage is installed. A third power supply required for redundancy when the optional drive cage is installed.

OS Support
Microsoft Windows NT
Microsoft Windows 2000
Novell NetWare
SCO UnixWare and OpenServer
IBM OS/2 Warp Family
Sun Solaris (future support)
Banyan VINES
RedHat Linux (future support)

Service and Support
Compaq Services provides a full range of service offerings, including a three-year, limited warranty fully supported by a worldwide network of resellers and service providers, lifetime toll-free 7 x 24 hardware technical phone support, and Pre-Failure Warranty coverage of hard drives, memory and processors. In addition, Compaq Services offers Site Inspection, Installation Support, and Warranty Upgrades to 4 hour response, Software Support, and full Account Management Solutions. Disaster recovery services are available through partnership with Comdisco.
