What’s New

• Intel Pentium^® III 667-MHz or 733-MHz Processor (dual capability)
• RCC LE 3.0 Chipset with 133-MHz Front Side Bus
• Dual Peer PCI Architecture
• 128-MB PC133MHz Registered ECC SDRAM memory expandable to 4 GB
• 64-bit slots for 64-bit expansion card support
• Single thumb screw system board removal for fast and easy servicing

At A Glance

• The ultimate workgroup server designed for demanding workgroups and remote/branch sites that need a powerful and highly available platform that is easy to use
• 256-KB second level ECC cache standard (full speed)
• Six expansion PCI slots: Four 64-bit and two 32-bit
• Compaq NC3163 Fast Ethernet NIC (embedded) 10/100 WOL (Wake On Lan)
• Integrated Dual Channel Wide Ultra2 SCSI Adapter
• Wide Ultra2/Ultra3 Drive Cage standard
• Support for up to six 1-inch Wide Ultra2/Ultra3 SCSI hot plug drives
• 109.2-GB maximum internal storage (internal hot plug drive cage only)
• Internal mass storage capacity up to 182GB (6x18.2GB (HP) + 2x36.4GB (NHP))
• Compaq Insight Manager, SmartStart, Integrated Remote Console (IRC) and Automatic Server Recovery-2 (ASR-2)
• Protected by Compaq Services, including a three-year, Next Business Day on-site limited Global warranty and extended Pre-Failure Warranty which covers processors, memory and disk drives — Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center at 1-800-345-1518 for details. In Canada, consult the Product Information Center at 1-800-567-1616 for details.

Standard Features

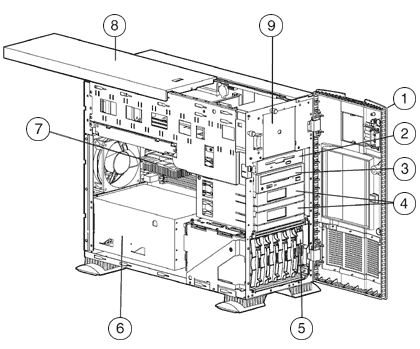

Compaq ProLiant ML370
Available in multiple configurations.

Processor – One of the following:
Intel Pentium III processor 733 MHz
Intel Pentium III processor 667 MHz

Cache Memory
256-KB second level ECC cache (full speed)

Upgradability
Upgradable to dual processing

Network Controller
Compaq NC3163 Fast Ethernet NIC (embedded) 10/100 WOL (Wake On Lan)

Storage Controller
Integrated Dual Channel Wide Ultra2 SCSI Adapter (upgradable with optional Integrated Smart Array Controller)

Graphics
Integrated ATI Rage IIC Video Controller with 4MB Video Memory

Form Factor
Tower or Rack

Manageability
Compaq Insight Manager
Compaq Remote Insight Board (PCI) (optional)
Compaq Remote Lights-Out Edition (optional)
Automatic Server Recovery-2 (ASR-2)
Integrated Remote Console (IRC)
Hardware Remote Console
Full Remote Server Reboot Capability
Reset and Failure Sequence Replay
Host Hardware Independent
Operating System Independent
Communication is out-of-band
Integrated Management Display (IMD) (Optional)
Integrated Management Log
Server Health Logging
Revision History Table
Automatic Revision Tracking
Drive Parameter Tracking (with Smart Array controller)
Dynamic Sector Repairing (with Smart Array controller)
Recovery Server Option (optional)
Off-Line Backup Processor capability (optional in Canada)
Pre-Failure Warranty (covers processors, hard drives and memory)

Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Disk configuration lock

Power Supply
325 Watt-CE Mark Compliant
Optional Hot Plug Redundant Power Supply Capability

OS Support
Microsoft Windows NT
Microsoft Windows 2000
Novell NetWare
SCO UnixWare and OpenServer
IBM OS/2 Warp Family
Sun Solaris (future support)
Banyan VINES
Linux RedHat (future support)

Service and Support
Compaq Services provides a three-year, limited warranty, including Pre-Failure Warranty (coverage of hard drives, memory and processors) fully supported by a worldwide network of resellers and service providers and lifetime toll-free 7 x 24 hardware technical phone support. In addition, available service offerings include:

A full range of CarePaq packaged hardware and software services:
  -  Installation and start up
  -  Extended coverage hours and enhanced response times
  -  System management and performance services
  -  Availability and recovery services
