Compaq ProLiant ML350

Compaq ProLiant ML350

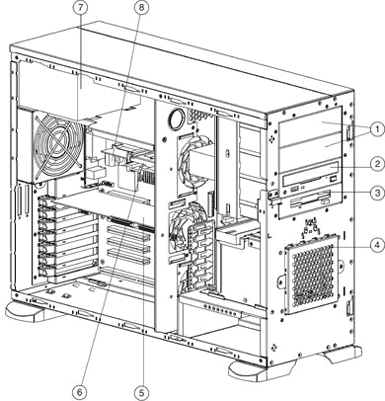

5.25-inch Available Removable Media Bays
32X Max IDE CD-ROM Drive
1.44-MB Diskette Drive
4 x 1" Hot Plug or Non-Hot Plug Hard Drive

Server Feature Board
Processor with Heatsink
300-Watt Power Supply
Processor Power Module

What's New

Intel Pentium^® III 600-MHz and 733-MHz processors
(dual capability)

RCC LE 3.0 Chipset with 133-MHz Front Side Bus

PC133MHz Registered ECC SDRAM DIMM memory, upgradable to 2GB

Hot Plug Models available

64-bit PCI Slots

At A Glance

The affordable two-way server that powers your applications today and anticipates your needs for tomorrow
256-KB second level ECC cache standard (full speed)
133-MHz GTL Bus Design
128-MB PC133-MHz Registered ECC SDRAM DIMM memory standard, expandable to 2-GB
Seven total slots: two 64-bit PCI, four 32-bit PCI, and one ISA
Compaq NC3163 Fast Ethernet NIC (embedded) 10/100 WOL (Wake On LAN)
Integrated Dual Channel Wide Ultra2 SCSI Adapter
Support for up to four 1" Wide Ultra2/Ultra3 SCSI hard drives
Internal storage capacity of up to 72.8-GB
Internal mass storage capacity of up to 109.2 GB (including the two removable media bays)
Standard 4 x 1" Drive Cage (Hot Plug or Non-Hot Plug depending on Model)
High-performance 32X Max IDE CD-ROM Drive
Compaq Insight Manager, SmartStart and Automatic Server Recovery (ASR)
Protected by Compaq Services, including a three-year, Next Business Day on-site limited Global warranty and extended Pre-Failure Warranty which covers processors, memory, and hard drives - Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center at 1-800-345-1518 for details. In Canada, consult the Product Information Center at 1-800-567-1616 for details.

Standard Features

Processor
Intel Pentium III 733-MHz processor
Intel Pentium III 600-MHz processor

Cache Memory
Integrated 256-KB Level 2 ECC cache (full speed)

Memory
Standard	128 MB (PC133-MHz ECC Registered SDRAM DIMM memory)
Maximum	2 GB

Network Controller
Compaq NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL (Wake On LAN) Model ML350T01


Expansion Slots
I/O (Total)	7 (6 available)
64-bit PCI	2 (2 available)
32-bit PCI	4 (3 available)
ISA	1 (1 available)

Storage Controller Integrated Dual Channel Wide Ultra2 SCSI Adapter

Storage
Diskette Drives	1.44 MB
CD-ROM	Internal 32X Max IDE CD-ROM Drive (Data transfer rates will vary from 150 KB/s to 4,800 KB/s depending on CD-ROM speed.)
Hard Drives	None

Maximum Internal Storage		72.8 GB (internal drive cage only) 109.2 GB (internal drive cage in addition to placing 18.2GB (1") hard drives in the two removable media bays; brackets required to place these drives come in the bezel blanks that come with the server)


Interfaces
Parallel		1
Serial		2
Pointing Device (Mouse)		1
Graphics		1
Hot Plug Keyboard		1
Network RJ-45		1

Graphics Integrated ATI Rage IIC Video Controller with 4MB Video Memory Form Factor Tower or optional 5U rack conversion kit

Compaq Software
Compaq Insight Manager		The comprehensive system management tool that monitors the operation of Compaq servers, workstations and clients
Compaq SmartStart		The server configuration and software integration tool from Compaq
Array Configuration Utility (ACU) with Smart Array Controllers		Same easy to use yet powerful graphical user interface (GUI) configuration utility and easy to navigate wizards for all Smart Array Controllers

Manageability
Compaq Insight Manager
Automatic Server Recovery (ASR)
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory and hard drives)

Security
Power-on password
Setup password
Diskette boot control
Parallel and serial interface control
Disk configuration lock
Power switch security

Power Supply
300 Watts, 100 to 240 VAC Rated Input Voltage, CE Mark Compliant

OS Support
Microsoft Windows NT
Microsoft BackOffice Small Business Server
Microsoft Windows 2000
Novell NetWare
SCO OpenServer
SCO UnixWare
RedHat Linux

Service and Support
Compaq Services provides a wide range of service offerings, including a three-year limited warrantyfully supported by a worldwide network of resellers and service providers, lifetime toll-free 7 x 24 hardware technical phone support, and Pre-Failure Warranty coverage of hard drives, memory, and processors. Disaster recovery services are available through partnership with Comdisco.
