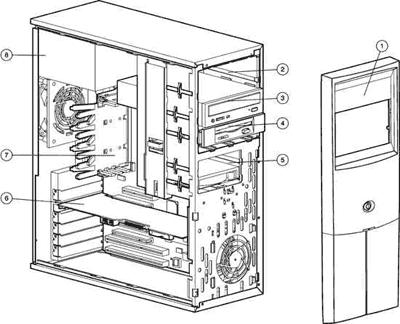

Front Bezel 5.25-inch Available Removable Media Bay 32X Max1 IDE CD-ROM Drive 1.44-MB Diskette Drive Processor Power Module

3.5-inch Available Hard Drive Bay Server Feature Board Processor with Heatsink 200W Power Supply

• Intel Pentium III 600-, 550- or 500-MHz processor
• Intel Pentium II 450-MHz processor
• Integrated 512-KB Level 2 ECC cache
• 100-MHz GTL+ Bus Design
• 64-MB 100-MHz unregistered ECC SDRAM DIMM memory standard, upgradable to maximum 768-MB
• Six total slots: three PCI, one shared PCI/ISA, one ISA and one AGP
• Compaq 10/100 TX PCI Intel UTP Controller (embedded)
• Integrated Wide Ultra2 SCSI Adapter
• Support for two 1-inch, non-hot plug hard drives, plus one available 5.25-inch, non-hot plug removable media bay
• Support for Compaq Wide Ultra2 SCSI non-hot plug hard drives and Wide Ultra2 SCSI Controllers
• Internal mass storage capacity of up to 54.6 GB
• High-performance 32X Max¹ IDE CD-ROM Drive
• Compaq Insight Manager², SmartStart and Automatic Server Recovery (ASR)
• Protected by Compaq Services, including a three-year, on-site limited warranty² and extended Pre-Failure Warranty² which covers Intel Pentium II processors and hard drives

Cache Memory
Integrated 512-KB Level 2 ECC cache
        6/600 Models
        6/550 Models
        6/500 Models
        6/450 Models

Memory
Standard	64-MB 100-MHz unregistered ECC SDRAM DIMM memory
Maximum	768 MB
6/600 Models         6/550 Models         6/500 Models         6/450 Models

Network Controller
Compaq 10/100 TX PCI Intel UTP Controller (embedded)
        6/600 Models
        6/550 Models
        6/500 Models
        6/450 Models

Expansion Slots
I/O (Total)	6 (5 available)
PCI	3 (2 available)
Shared PCI/ISA	1
ISA	1
AGP	1

Storage Controller
Integrated Wide Ultra2 SCSI Adapter

Storage
Diskette Drives	1.44 MB
CD-ROM	Internal 32X Max1 IDE CD-ROM Drive
Hard Drives	9.1 GB Wide Ultra2 SCSI
6/600 Model 6/600/512/64/9.1         6/550 Model 6/550/512/64/9.1         6/500 Model 6/500/512/64/9.1         6/450 Model 6/450/512/64/9.1
Hard Drives	None
6/600 Model 6/600/512/64         6/550 Model 6/550/512/64         6/500 Model 6/500/512/64         6/450 Model 6/450/512/64
Maximum Internal Storage	54.6 GB (includes one available removable media drive bay)
Interfaces
Parallel	1
Serial	2
USB	2
Pointing Device (Mouse)	1
Graphics	1
Hot Plug Keyboard	1
Network RJ-45	1

Graphics
Integrated 1024 x 768, 256 color non-interlaced on PCI local bus, 1-MB video memory

Form Factor
Tower or optional 4U rack (with shelf kit)

Compaq Software
Compaq Insight Manager
The comprehensive system management tool that monitors the operation of Compaq servers, workstations and clients

Compaq SmartStart
The server configuration and software integration tool from Compaq

Array Configuration Utility

(ACU) with Smart Array Controllers
Same easy to use yet powerful graphical user interface (GUI) configuration utility and easy to navigate wizards for all Smart Array Controllers

Manageability
Compaq Insight Manager
Automatic Server Recovery (ASR)
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Pre-Failure Warranty² (covers processors and hard drives)

Security
Power-on password
Setup password
Diskette boot control
Parallel and serial interface control
Disk configuration lock
Power switch security

Power Supply
200 Watts, CE Mark Compliant

OS Support
Microsoft Windows NT
Microsoft BackOffice Small Business Server
Novell NetWare
SCO OpenServer

Service and Support
Compaq Services provides a wide range of service offerings, including a three-year limited warranty² fully supported by a worldwide network of resellers and service providers, lifetime toll-free 7 x 24 hardware technical phone support, and Pre-Failure Warranty² coverage of hard drives and Intel Pentium II processors. Disaster recovery services are available through partnership with Comdisco.
