Compaq ProLiant DL750

Compaq ProLiant DL750

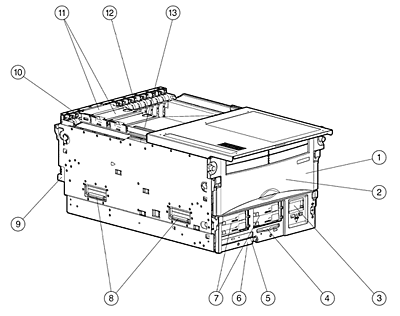

Processor/Memory Module
One to eight Pentium III Xeon 550-MHz Processors with Redundant Processor Power Module
Integrated Management Display (IMD)
(Optional for 512K Model)
Integrated 1.44-MB Diskette Drive
Integrated High Speed² IDE CD-ROM Low-Profile
Media Module

Four 1" Wide Ultra2 SCSI Hot Plug Drive Bays
Integrated Lift Handles
Two Redundant Hot Plug Power Supplies
(single Hot Plug Power supply on 512K Model)
I/O Module
Redundant Hot Plug Fans
Eleven 64-Bit PCI I/O expansion slots (2 x 66 MHz, 9 x 33 MHz) all PCI Hot Plug
System Interconnect Status Indicators

At a Glance

The ultimate high-density data center server delivering breakthrough 8-way scalable performance for 7 x 24 multi-server rack environments
8-way server with Compaq/Intel co-developed Profusion architecture and Pentium^®III Xeon™ support
7U rack-optimized design
New modular design for increased ease of serviceability and future upgradability
Supports one to eight Intel 550-MHz Pentium III Xeon processors with 100-MHz front-side bus & full speed cache
512-KB, 1-MB, and 2-MB L2 Cache
ECC-protected memory bus and cache
100-MHz SDRAM DIMM 2-way interleaved memory that is expandable to 16 GB
Eleven 64-Bit PCI I/O expansion slots (2 x 66 MHz, 9 x 33 MHz) all PCI Hot Plug
Integrated Smart Array Controller (Ultra2 support) (RAID 0, 0 + 1, 5 support)
NC3131 Fast Ethernet NIC Dual Port 64 PCI 10/100, upgradable to Gigabit Ethernet
Internal Hot Plug Drive Storage of 72.8 GB (4 x 1" 18.2-GB Wide Ultra2 SCSI hard drives). 35.2 TB of external storage using Fibre Channel Host Adapters, Hubs and Array Storage Subsystems
Robust set of hot plug and redundant features including PCI Hot Plug, hot plug drive bays, redundant hot plug fans and power supplies and support for ECC memory, redundant NICs, ASR-2
System Interconnect Status Indicators
Integrated Management Display (IMD) (Optional for 512K Model)
Integrated Remote Console (IRC)
Remote-Flash Redundant ROM
Remote ROM Flash
Remote Redundant ROM
Protected by Compaq Services, including a limited next day, three-year parts, labor and on-site warranty¹ with optional 4 hour response. Pre-Failure Warranty¹ and Compaq Service and Support Programs available on a Worldwide basis

Standard Features

Processor
Intel Pentium III Xeon processors 550 MHz
        6/550-2 MB Model 8-4096 MB
        6/550-2 MB Model 4-2048 MB
        6/550-1 MB Model 2-1024 MB
        6/550-512 KB Model 1-256 MB

Cache Memory
2-MB level 2 cache
6/550-2 MB Model 8-4096 MB
6/550-2 MB Model 4-2048 MB

1-MB level 2 cache
6/550-1 MB Model 2-1024 MB

512-K level 2 cache
6/550-512 KB Model 1-256 MB

Cache Accelerator
Cache Accelerator Standard
        6/550-2 MB Model 8-4096 MB
        6/550-2 MB Model 4-2048 MB
        6/550-1 MB Model 2-1024 MB

Cache Accelerator Optional
6/550-512 KB Model 1-256 MB

Memory
Standard	4096 MB ECC protected SDRAM DIMMs
Maximum	16 GB
6/550-2 MB Model 8-4096 MB

Standard	2048 MB ECC protected SDRAM DIMMs
Maximum	16 GB
6/550-2 MB Model 4-2048 MB

Standard	1024 MB ECC protected SDRAM DIMMs
Maximum	16 GB
6/550-1 MB Model 2-1024 MB

Standard	256 MB ECC protected SDRAM DIMMs
Maximum	16 GB
6/550-512 KB Model 1-256 MB

Network Controller
NC3131 64-bit PCI dual port 10/100 Controller upgradable to Gigabit
        6/550-2 MB Model 8-4096 MB
        6/550-2 MB Model 4-2048 MB
        6/550-1 MB Model 2-1024 MB
        6/550-512 KB Model 1-256 MB

Expansion Slots
I/O (Total)	11 Total (64-Bit PCI)
PCI 66 MHz (Hot Plug)	2
PCI 33 MHz (Hot Plug	9

Storage Controllers
Integrated Smart Array Controller (Ultra2) (One Internal Channel for RAID Capability for internal drives)
(One External Channel for tape support only)
Optional support for Ultra2 in a PCI slot

Storage
Diskette Drive	Integrated 1.44 MB Floppy Drive
CD-ROM	Integrated High Speed² IDE CD-ROM drive Low-Profile
Hard Drives	None
6/550-2 MB Model 4-2048 MB 6/550-1 MB Model 2-1024 MB 6/550-512 KB Model 1-256 MB

Hard Drives	Four 9.1-GB Wide Ultra2 10,000 rpm Drives
6/550-2 MB Model 8-4096 MB

Maximum Internal Storage	72.8 GB (internal hot plug cage only)

Interfaces
Parallel	1
Serial	2
Pointing Device (mouse)	1
Graphics	1
Keyboard	1
SCSI Tape Port (VHDCI)	1
Network RJ-45	2

Graphics
Integrated 1280 x 1024, 256 colors PCI Video controller with 2 MB of video SGRAM memory

Form Factor
7U Rack Form Factor; Ships with sliding rack rails and cable management arm; Standard 19" rack-mountable

Compaq Software
Compaq Insight Manager	The comprehensive system management tool that monitors the operation of Compaq servers, workstations and clients
Compaq SmartStart	The server configuration and software integration tool from Compaq
Array Configuration Utility (ACU) with Smart Array Controllers	Same easy to use yet powerful Graphical User Interface (GUI) configuration utility and easy to navigate wizards for all Smart Array Controllers
Intelligent Manageability	ROM-based configuration utility
Compaq Advanced Network Fault Detection and Correction Feature
Rack Builder

Manageability
Compaq Insight Manager
Compaq Remote Insight/PCI Board (optional)
Integrated Remote Console-IRC
Integrated Management Display (IMD) (optional for 512K Model)
Integrated Management Log (IML)
Server Health logging
Automatic Server Recovery-2 (ASR-2)
System Interconnect Status Indicators
Remote-Flash Redundant ROM
Recovery Server Option
Off-Line Backup Processor capability (optional in Canada)
Compaq Power Down Utility
Compaq Power Supply Viewer
Pre-Failure Warranty¹(covers processors, as well as hard drives and memory)

Availability
PCI Hot Plug with push button functionality
Redundant Hot Plug Fans
Smart Array 4200 Controller (optional)
Smart Array 3200 Controller (optional)
Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)
Redundant Processor Power Modules
Redundant/adaptive load balancing NIC Support
Hot Plug Dual Port 10/100 TX NIC
Redundant Hot Plug Power Supplies
ECC Memory

Security
Power-on password
Hot plug keyboard password
Diskette drive control
Diskette boot control
Network server mode
Security provision
Parallel and serial interface control
Administrator's password
Disk configuration lock
Hot plug access security

Power Supply
Two Redundant Hot Plug 1150/500-Watt power supplies per system (single 1150/500-Watt power supply on 512K Model). Power supplies are load sharing. Optimized for 220 volts; runs on 110 or 220 volts

OS Support
Microsoft Windows NT
Microsoft Windows 2000 Server (when available)
Novell NetWare
SCO UnixWare and OpenServer
Sun Solaris^TM 7 for Intel Platform Edition³

Service and Support
Compaq Services provides a wide range of service offerings, including a three-year, limited warranty¹fully supported by a worldwide network of resellers and service providers, lifetime toll-free 7 x 24 hardware technical phone support, and Pre-Failure Warranty¹ coverage of hard drives, memory and processors. Disaster recovery services are available through partnership with Comdisco.
