Compaq ProLiant DL380

Compaq ProLiant DL380

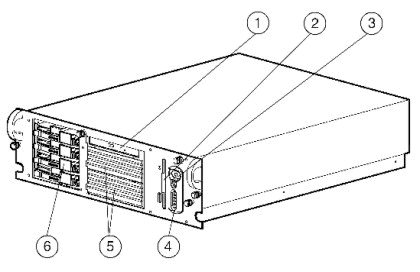

Low-profile High Speed IDE CD-ROM
1.44-MB Diskette Drive
Protected Power Switch

Front Panel Status LEDs
One full height or two half height removable media bays
Four 1-inch Wide Ultra2/Ultra3 SCSI hot plug drive bays

What’s New

Intel Pentium^® III 733-MHz Processor (dual capability)
RCC LE 3.0 Chipset with 133-MHz Front Side Bus
PC133-MHz Registered ECC SDRAM memory
Integrated Smart Array Controller
64-bit slots for 64-bit expansion card support
275 Watt Power Supply
Simplified system board removal for fast and easy servicing

At A Glance

Space saving rack optimized server for space conscious data centers and remote sites requiring high levels of reliability and performance in a rack-ready form factor (3U, 5.25² )
256-KB level 2 ECC cache
128-MB PC133-MHz Registered ECC SDRAM memory, expandable to 4 GB
Four expansion PCI slots: Three 64-bit and one 32-bit
Compaq NC3163 Fast Ethernet NIC Embedded 10/100 WOL
Wide Ultra2/Ultra3 SCSI Drive Cage standard
Support for up to four 1²
Wide Ultra2/Ultra3 hot plug hard drives & for two additional Wide Ultra2/Ultra3 SCSI hot plug drives in removable media bay using optional 2 x 1² drive cage
Internal hot plug capacity up to 72.8 GB standard or up to 109.2 GB using optional 2 x 1² drive cage
Sliding rails and cable management arm for easy serviceability and toolless access to major components
Integrated Remote Console (IRC), Automatic Server Recovery-2 (ASR-2), Compaq Insight Manager and SmartStart
Protected by Compaq Services, including a three-year, Next Business Day on-site limited Global warranty and extended Pre-Failure Warranty which covers processors, memory, and hard drives — Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center at 1-800-345-1518 for details. In Canada, consult the Product Information Center at 1-800-567-1616 for details.

Standard Features

Processor
Intel Pentium III processor 733 MHz

Upgradability
Upgradable to dual processing

Memory
Standard		128 MB (PC133-MHz Registered ECC SDRAM memory)
Maximum		4 GB

Network Controller Compaq NC3163 Fast Ethernet NIC (embedded) PCI 10/100 WOL

Expansion Slots
I/O (Total)		4
64-bit PCI		3
32-bit PCI		1

Storage Controller Integrated Smart Array Controller

Storage
Diskette Drive		1.44 MB
CD-ROM		High Speed IDE CD-ROM Drive (Low Profile)
Hard Drives		None
Maximum Internal Storage		109.2 GB (internal drive cage with optional 2 x 1² Ultra2 drive cage) (Must be used in conjunction with the standard 4 x 1² Ultra2 Drive cage.)

Interfaces
Parallel		1
Serial		2
Pointing Device (Mouse)		1
Graphics		1
Hot Plug Keyboard		1
External SCSI (for tape only)		1
Network RJ-45		1

Graphics Integrated ATI Rage IIC Video Controller with 4MB Video Memory Form Factor Rack (3U), (5.25-inch)

Compaq Software
Compaq Insight Manager		The comprehensive system management tool that monitors the operation of Compaq servers, workstations and clients
Compaq SmartStart		The server configuration and software integration tool from Compaq
Array Configuration Utility (ACU) with Smart Array Controllers		Same easy to use yet powerful graphical user interface (GUI) configuration utility and easy to navigate wizards for all Smart Array Controllers including the Integrated Smart Array Controller

Intelligent Manageability
Automatic Server Recovery-2 (ASR-2)
Compaq Remote Insight Board (PCI) (optional)
Compaq Remote Insight Lights-Out Edition (optional)
Compaq Insight Manager
Integrated Remote Console (IRC)
Hardware Remote Console
Full Remote Server Reboot Capability
Reset and Failure Sequence Replay
Host Hardware Independent
Operating System Independent
Communication is out-of-band
Integrated Management Log
Server Health Logging
Revision History Table
Automatic Revision Tracking
Drive Parameter Tracking (with Smart Array Controllers)
Dynamic Sector Repairing (with Smart Array Controllers)
Recovery Server Option (optional)
Off-Line Backup Processor capability
Pre-Failure Warranty(covers processors, hard drives and memory)Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Disk configuration lock

Power Supply
275 Watt, CE Mark Compliant
Optional Redundant Power Supply Capability

OS Support
Microsoft Windows NT
Microsoft Windows 2000
Novell NetWare
SCO UnixWare and OpenServer
IBM OS/2 Warp Family
Sun Solaris (future support)
Banyan VINES
Linux RedHat

Service and Support
Compaq Services provides a three-year, limited warranty, including Pre-Failure Warranty (coverage of hard drives, memory and processors) fully supported by a worldwide network of resellers and service providers and lifetime toll-free 7 x 24 hardware technical phone support. In addition, available service offerings include a full range of CarePaq packaged hardware and software services:
- Installation and start up
- Extended coverage hours and enhanced response times
- System management and performance services
- Availability and recovery services
