Compaq ProLiant CL380

Compaq ProLiant CL380

Benefits at a Glance

Complete cluster housed in a single 10u cabinet, pre-wired and pre-tested makes it easy to install and easy to order through a single part number.
Convenient size, flexible configuration and integrated Compaq management tools, mean easy deployment and rapid install.
Compaq's newly released Cluster Monitor (part of Compaq Insight Manager XE) and Intelligent Cluster Administrator enable web-based remote monitoring and administration of the cluster across the Internet or your intranet making the ProLiant CL1850 easy to mange and minimizing need for local technical support.
Commonality with ProLiant servers and other industry-standard technologies mean low purchase price.
On-line serviceability and easy access to hot swappable components makes the ProLiant CL1850 easy to service and reduces down-time, resulting in low cost of maintenance.
Substantial in-system growth provides low cost incremental expansion of performance and storage capacity without the cost of system upgrade or change
Ready for the Enterprise - Service and Support team up with the channel to deliver and support business critical requirements.

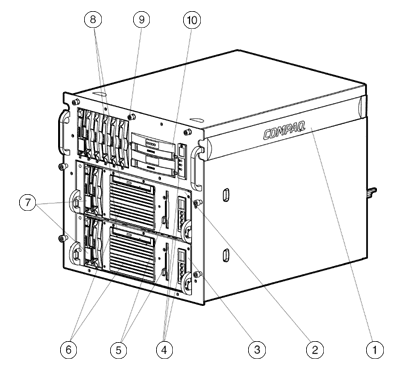

Side Rails
Server 1
Server 2
LED’s/protected power switches (3)
1.44MB Diskette Drive (one per server)
Two half height or one full height removable media bays (per server)

2 x 1² Wide Ultra2 Drive Cage (per server)
High Speed CD ROM Drive (one per server)
6 x 1² Wide Ultra2 Drive Cage for Shared Storage drives
Shared Storage RAID Controllers (CR3500)

At A Glance

Two 2P clustered servers plus shared storage in a single cabinet
Shared Storage System supports up to six 1² Wide Ultra2 SCSI 10,000 rpm hot pluggable drives (up to 109.2GB)
One Intel Pentium III^® 550-MHz processor per server standard (dual processor capability per server)
512-KB level 2 ECC cache per processor
128-MB 100-MHz registered ECC SDRAM memory, expandable to 1 GB (per server)
Four expansion slots, three PCI, one PCI/ISA (per server)
Compaq 10/100Mbps TX embedded UTP Controller with full-duplex Ethernet support for heartbeat monitoring
10/100 Mbps full-duplex Ethernet for public LAN (occupies one PCI slot per server)
Integrated Dual Channel
Wide-Ultra SCSI-3 Adapter - utilized for server boot (per server)
Dual Channel 64-bit Wide Ultra2 SCSI adapter – utilized for shared storage interconnect (per server)
Support for up to two 1² Wide Ultra2 SCSI hot plug drives (per server)
Support for one full height or two half height removable media devices
Rack or Tower form factor – 10U
Removable servers, hot plug disks, power supplies and RAID controllers for easy serviceability and toolless access to major components
Integrated Remote Console (IRC)
Automatic Server Recovery-2 (ASR-2 )
Hot Plug Redundant Power Supply (48 volt DC) (optional)
Pre-installed, low-profile High SpeedIDE CD-ROM drive
Protected by Compaq Services, including a three-year, on-site limited warranty and extended Pre-Failure Warranty which covers processors, memory and disk drives on the server — Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center at 1-800-345-1518 for details. In Canada, consult the Product Information Center at 1-800-567-1616 for details.

Standard Features

Processor (per server)
Intel Pentium III processors 550-MHz

Cache Memory (per server)
512-KB level 2 writeback cache per processor

Upgradability (per server)
Upgradable to dual processing



Memory (per server)
Standard	128 MB (100MHz Registered ECC SDRAM memory)
Maximum	1 GB

Network Controller (per server) Compaq 10/100 TX (embedded) UTP Controller with full-duplex Ethernet support for heartbeat connection Compaq NC3123 Fast Ethernet NIC PCI 10/100 Wake on LAN occupying a PCI slot for LAN connectivity

Expansion Slots (per server)
I/O (Total)		4, 2 available
PCI		3, 1 available
Shared PCI /ISA		1

Storage Adapters (per server) 64-Bit Dual Channel Wide Ultra2 Adapter occupying a PCI slot (interface to shared storage system) Integrated Dual Channel Wide-Ultra SCSI-3 Adapter (utilized for server boot)

Storage
Diskette Drive		1.44 MB (per server)
CD-ROM		High Speed IDE CD-ROM Drive (per server)
Hard Drives		None
Maximum Shared Internal Storage		109.2 GB
Maximum Non-Shared Internal Storage		36.4 GB (per server)

Shared Storage(total for cluster server system) Shared Storage RAID CR3500 controller one ship standard. Optionally up to two controllers in the shared storage. 9.1-GB or 18.2-GB Pluggable Wide Ultra2 SCSI 10,000 rpm 1² drives. None ship standard. Up to six drives in the cluster server cabinet.

Interfaces (per server)
Parallel		1
Serial		2
Pointing Device (mouse)		1
Graphics		1
Hot Plug Keyboard		1
External Wide-Ultra SCSI-3		1
Network RJ-45		1

Graphics (per server) Integrated 1024 x 768, 256 color on PCI local bus, 1-MB video memory Form Factor (total cluster) Tower or Rack (10U), (17.65-inch)

Compaq Software
Compaq Insight Manager		The comprehensive system management tool that monitors the operation of Compaq servers, workstations and clients
Compaq SmartStart		The server configuration and software integration tool from Compaq
Array Configuration Utility (ACU) with Smart Array Controllers		Same easy to use yet powerful Graphical User Interface (GUI) configuration utility and easy to navigate wizards for all Smart Array Controllers
CR3500 Configuration Utility		An easy to use yet powerful GUI configuration utility for the CL1850 shared storage RAID controller(s).

Intelligent Manageability
Automatic Server Recovery-2 (ASR-2)
Integrated Remote Console (IRC)
Hardware Remote Console
Full Remote Server Reboot Capability
Reset and Failure Sequence Replay
Host Hardware Independent
Operating System Independent
Communication is out-of-band
Integrated Management Log
Server Health Logging
Revision History Table
Automatic Revision Tracking
Drive Parameter Tracking (with Smart Array Controllers)
Dynamic Sector Repairing (with Smart Array Controllers)
Off-Line Backup Processor (optional in Canada)
Pre-Failure Warranty(covers processors, hard drives on the server and memory)

Security
Power-on password
Hot plug keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Disk configuration lock

Power Supply
225 Watt, CE Mark Compliant

OS Support
Microsoft Windows NT
Microsoft Windows 2000

Service and Support
Compaq Services provides a wide range of service offerings, including a three-year, limited warranty fully supported by a worldwide network of resellers and service providers, lifetime toll-free 7 x 24 hardware technical phone support, and Pre-Failure Warranty coverage of hard drives on the server, memory and processors. Disaster recovery services are available through partnership with Comdisco.
